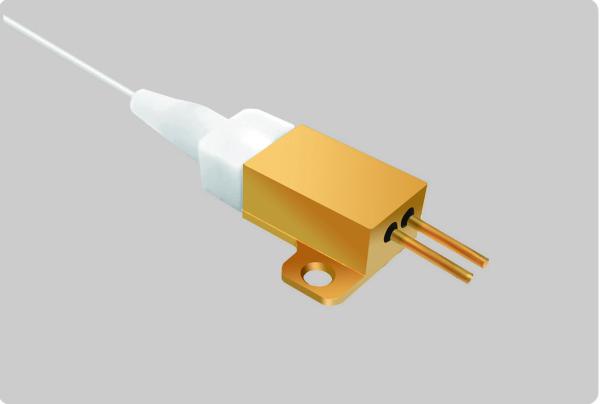

    3w 976nm Wavelength Stabilized Fiber Coupled Laser Diode Module

    Ask Lasest Price
    Brand Name : BWT
    Certification : ISO9001
    Model Number : K976AB2RN-3.000W
    Delivery Time : 4-8weeks
    Payment Terms : T/T
    Supply Ability : 100,000/year
    • Product Details
    • Company Profile

    3w 976nm Wavelength Stabilized Fiber Coupled Laser Diode Module

    Features:

    976nm wavelength

    3W output power

    105µm fiber core diameter

    0.22N.A.

    Narrow bandwidth △λ≤0.7nm

    1020nm-1200nm feedback protection


    Applications:

    Fiber laser pumping


    Specifications(25℃)


    Symbol


    Unit


    K976AB2RN-3.000W
    MinimumTypicalMaximum
    Optical DataCW-Output PowerPoW3--
    Center Wavelengthλcnm915±0.5
    Spectral Width (FWHM)△λnm<0.7
    Wavelength Shift with Temperature△λ/△Tnm/℃-0.02-
    Wavelength Shift with Current△λ/△AA/℃-0.03-
    Electrical DataElectrical-to-Optical EfficiencyPE%50-
    Threshold currentlthA-0.9-
    Operating currentlopA-45
    Operating voltageVopV-1.61.8
    Slope EfficiencyηW/A-1-

    Fiber Data


    Core diameterDcoreμm-105-
    Cladding diameterDcladμm-125-
    Buffer diameterDbufμm-245-
    Numeric apertureNANA-0.22-
    Fiber lengthLfm-1-
    Fiber Loose Tubing Diameter-μm0.9mm PVC 15cm
    Minimum Bending Radius-mm50--
    Fiber termination---None-
    Feedback IsolationBack reflection wavelengthλnm1020-1200
    Back reflection isolation-dB-30-
    OthersESDVesdV--500
    Storage temperatureTst-40-70
    Lead Soldering TempTls--260
    Lead Soldering Timetsec--10
    Operating case temperatureTop20-30
    Relative HumidityRH%15-85
