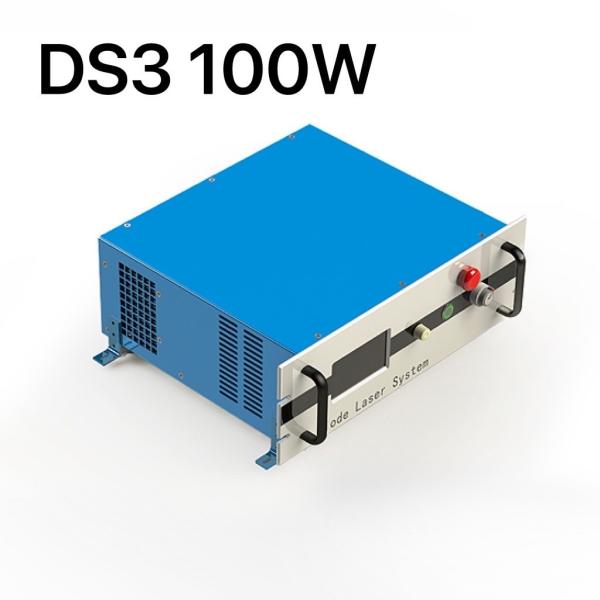

100W Diode Laser System 976nm with Direct adjustment / RS232

Features:

Applications:

Specifications(25℃)		Unit	DS3-51512-LD
Optical Data	CW-Output Power	W	100W
	Center Wavelength	nm	915/976
	Spectral Width (FWHM)	nm	±10
	Wavelength Shift with Temperature	nm/℃	≤6
	Output power instability(25℃)	%	±3(5 hours)
	Power Range	%	10~100
Electrical Data	Power supply	V	105~200(50-60Hz)
	Power consumption at nom. Power, approx	W	<300
	Drive mode	-	Constant current
	Emission mode	-	CW or Modulated 1 Hz in 20kHz
	Control mode	-	Touch screen, RS232, I/O
	Modulation frequency	-	1~20kHz
	Modulation Pulse Width	µs	16µs~950ms(Pulse)/16µs~999ms(Single Pulse)
	Modulation Rise/Fall Time (Min. Value)	µs	≤10
	Current	A	<12
Fiber Data	Core diameter	μm	105/135/200
	Numeric aperture	-	0.22
	Fiber length	m	2
	Fiber termination	-	SMA905
Aiming beam Data	Center wavelength	nm	635±10
Aiming beam Data	CW Output Power	mW	2
Mechanical Parameters	Dimensions (L×W×H/mm)	-	S size260360125 M size 340"438"145
Mechanical Parameters	Weight	Kg	<15
Others	Refrigerating method	-	Air cooling
	Storage temperature	℃	5~50
	Temperature Ambient in Operation	℃	15~30
	Cooling requirement	-	Internal fan, At least 10 cm space outside fan
	Relative Humidity	%	5~80
	Safety class	-	4(EN 60825-01)

Product Tags:

100w 976nm fiber coupled laser system
