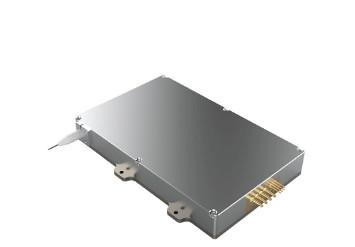

Scientific Research Fiber Coupled Diode Laser 445nm 50w

Product Categories

BWT Beijing Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

445nm-50W

Features:

Applications:

Specifications(25℃)		Symbol	Unit	K445HR7FN-50.00WN1N-11315
Specifications(25℃)		Symbol	Unit	Minimum	Typical	Maximum
Optical Data (1)	CW-Output Power	Po	W	50	-	-
	Number of submodules	pcs	-	-	2	-
	Submodule CW Output power	Po	W	-	25	-
	Center Wavelength	λc	nm	445±20
	Spectral width(FWHM)	△λ	nm	-	6	-
	Wavelength Shift with Temperature	△λ/△T	nm/℃	-	0.1	-
	Wavelength Shift with Current	△λ/△A	nm/A	-	1	-
Electrical Data	Electrical-to-Optical Efficiency	PE	%	-	30	-
	Threshold Current	I_th	A	-	0.35	-
	Operating Current	I_bol	A	-	2.5	3.5
	Operating Voltage (Single Module)	V_op	V	-	35	40
	Slope Efficiency (Single Module)	η	W/A	-	11.5	-
	Power Supply Mode	-	-	-	2 Modules	-
Fiber Data	Core diameter	D_core	µm	-	113	-


	Numerical Aperture	NA	-	-	0.15	-
	Fiber Termination	-	-	-	SMA905	-
	Minimum Bending Radius	-	mm	50	-	-
Thermistor	-	Rt	(KΩ)/β(25℃)	-	10±3%/3450	-
Others	ESD	V_esd	V	-	-	500
	Storage Temperature	T_st	℃	-20	-	70
	Lead Soldering Tempreature	T_ls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating case temperature	T_op	℃	15	-	30
	Relative Humidity	RH	%	15	-	75
