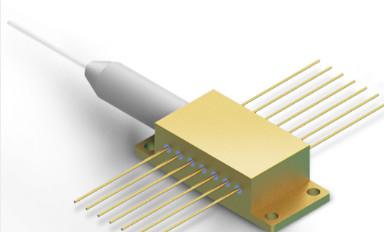

    785nm 600mw Fiber Coupled Diode Laser Bwt Brand

    Ask Lasest Price
    Brand Name : BWT
    Certification : ISO9001
    Model Number : K785AFLFN-0.600W
    Delivery Time : 4-8weeks
    Payment Terms : T/T
    Supply Ability : 100,000/year
    • Product Details
    • Company Profile

    785nm 600mw Fiber Coupled Diode Laser Bwt Brand

    785nm-600mW


    Features:

    • wavelength 785nm
    • output power 600mW
    • 105µm fiber bundle diameter
    • 0.22N.A.


    Applications:

    • Sensing detection

    Specifications(25℃)


    Symbol


    Unit


    K785AFLFN-0.600W
    MinimumTypicalMaximum
    Optical DataCW-Output PowerPoW0.6--
    Center Wavelengthλcnm785±0.5
    Spectral Width (FWHM)△λnm-<0.1
    Wavelength Shift with Temperature△λ/△Tnm/℃-0.01-
    Electrical DataElectrical-to-Optical EfficiencyPE%30-
    Threshold currentlthA-0.4-
    Operating currentlopA-1.11.5
    Operating voltageVopV-1.92.2
    Slope EfficiencyηW/A-1.0-

    Fiber Data


    Core diameterDcoreμm-105-
    Cladding diameterDcladμm-125-
    Numeric apertureNANA-0.22-
    Fiber lengthLfm-1-
    Fiber Loose Tubing Diameter-mm0.9mm
    Minimum Bending Radius-mm50--
    Fiber termination--FC
    ThermistorRt(KΩ)/β(25℃)10土3%/3477
    PDCurentlmoμA100500
    TECTEC Max.CurrentltecA--2.2
    TEC Max.VoltageVtecV--8.75
    OthersESDVesdV--500
    Storage temperatureTst-20-70
    Lead Soldering TempTls--260
    Lead Soldering Timetsec--10
    Operating case temperatureTop20-30
    Relative HumidityRH%15-75
