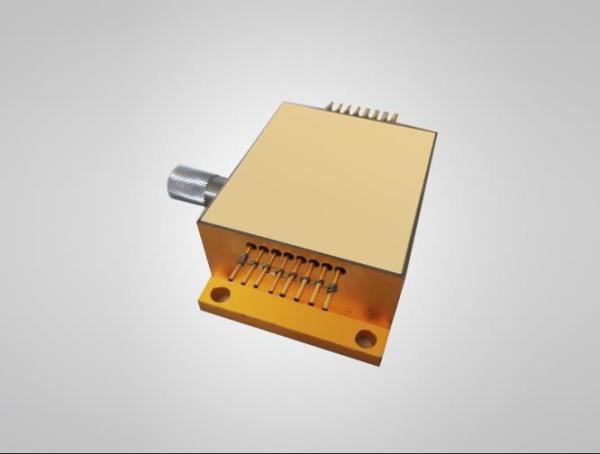

    200µm Fiber Bundle Diode Laser Module 1064nm 20W for Medical

    Ask Lasest Price
    Brand Name : BWT
    Certification : ISO9001
    Model Number : KA64HAMCA-20.00W
    Delivery Time : 4-8weeks
    Payment Terms : T/T
    Supply Ability : 100,000/year
    • Product Details
    • Company Profile

    200µm Fiber Bundle Diode Laser Module 1064nm 20W for Medical

    Features:

    • 20W output power
    • 1064nm wavelength
    • Standard fiber coupling for 200μm/ 0.22NA

    Applications:

    • Dental
    • Dermatology
    • Therapeutic

    Specifications(25℃)


    Symbol


    Unit


    KA64HAMCA-20.00W
    MinimumTypicalMaximum
    Optical DataCW-Output PowerPoW20--
    Center Wavelengthλcnm1064±20
    Spectral Width (FWHM)△λnm

    6


    Wavelength Shift with Temperature△λ/△Tnm/℃-0.3-
    Wavelength Shift with Current△λ/△Anm/A-1-
    Electrical DataElectrical-to-Optical EfficiencyPE%30--
    Threshold currentlthA-0.7-
    Operating currentlopA--9
    Operating voltageVopV--7
    Slope EfficiencyηW/A-2.8-

    Fiber Data


    Core diameterDcoreμm-200-
    Numeric ApertureNANA-0.22-
    Fiber termination---SMA905-
    PD DataCurrentImoµA300-3000
    Thermistor-Rt(K Ω)/β(25℃)-10±3%/3477-
    Aiming Beam DataOutput PowerPamW-2-
    Wavelengthlanm635±10
    VoltageVaV-2.2-
    CurrentIamA-4565
    OthersESDVesdV--500
    Storage temperatureTst-20-70
    Lead Soldering TempTls--260
    Lead Soldering Timetsec--10
    Operating case temperatureTop15-35
    Relative HumidityRH%15-75
