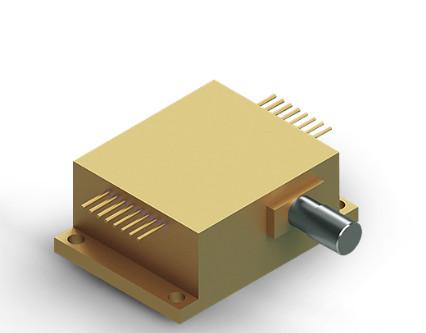

    Medical 20watt 1064nm Fiber Coupled Diode Laser With Aiming Beam Thermistor

    Ask Lasest Price
    Brand Name : BWT
    Certification : ISO9001
    Model Number : KA64HAMCA-20.00W
    Delivery Time : 4-8weeks
    Payment Terms : T/T
    Supply Ability : 100,000/year
    • Product Details
    • Company Profile

    Medical 20watt 1064nm Fiber Coupled Diode Laser With Aiming Beam Thermistor

    20Watt 1064nm Fiber Coupled Diode Laser With Aiming Beam , Thermistor for Medical


    Features:

    1064nm Wavelength

    20W Output power

    200μm Fiber core diameter

    0.22 NA Optical fiber numerical aperture

    Applications:

    Cosmetology

    Physiotherapy

    Surgery

    Dentistry

    Specifications(25℃)


    Symbol


    Unit


    KA64HAMCA-20.00W
    MinimumTypicalMaximum
    Optical DataCW-Output PowerPoW20--
    Center Wavelengthλcnm1064±20
    Spectral Width (FWHM)△λnm

    12


    Wavelength Shift with Temperature△λ/△Tnm/℃-0.3-
    Electrical DataElectrical-to-Optical EfficiencyPE%-35-
    Threshold currentlthA-0.9-
    Operating currentlopA--10
    Operating voltageVopV--7
    Slope EfficiencyηW/A-2.7-

    Fiber Data


    Core diameterDcoreμm-200-
    Numeric ApertureNANA-0.22-
    Fiber termination---SMA905-
    PD DataCurrentImoµA300-2000
    Thermistor-Rt(K Ω)/β(25℃)-10±3%-
    Aiming Beam DataOutput PowerPamW-2-
    Wavelengthlanm635±10
    VoltageVaV-2.3-
    CurrentIamA-4565
    OthersESDVesdV--500
    Storage temperatureTst-20-70
    Lead Soldering TempTls--260
    Lead Soldering Timetsec--10
    Operating case temperatureTop15-35
    Relative HumidityRH%15-75
