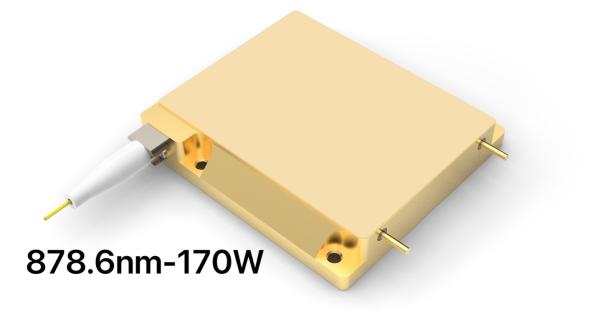

    878.6nm 170w Fiber Coupled Diode Laser For Soild State Pump

    Ask Lasest Price
    Brand Name : BWT
    Model Number : K878BL9RN-170.0W
    Certification : ISO9001
    Delivery Time : 4-8weeks
    Payment Terms : T/T
    Supply Ability : 100,000/year
    • Product Details
    • Company Profile

    878.6nm 170w Fiber Coupled Diode Laser For Soild State Pump


    Features

    Wavelength:878.6nm

    Output power:170W

    Fiber core diameter:200μm

    Optical fiber numerical aperture:0.22 NA

    Feedback protection:1020nm~1200nm


    Application:

    Solid-state laser pump source

    Specifications(25℃)


    Symbol


    Unit


    K878BL9RN-170.0W
    MinimumTypicalMaximum
    Optical DataCW-Output PowerPoW170--
    Center Wavelengthλcnm878.6±1
    Spectral Width (FWHM)△λnm-0.5-
    Wavelength Shift with Temperature△λ/△Tnm/℃-0.03-
    NA Filling(95% of Power)-NA-0.17-
    Electrical DataElectrical-to-Optical EfficiencyPE%47-
    Threshold currentlthA-1.7-
    Operating currentlopA-12.014.0
    Operating voltageVopV-29.531.0
    Slope EfficiencyηW/A-15.5-

    Fiber Data


    Core diameterDcoreμm-200-
    Cladding DiameterDdadμm-220-
    Numeric apertureNA--0.22-
    Fiber LengthLfm-2.0-
    Fiber Loose Tubing Diameter-mm-3.0
    Minimum Bending Radius-mm88--
    Fiber Termination--SMA905
    Feedback lsolationWavelength-nm1020-1200
    lsolation-dB30
    OthersESDVesdV--500
    Storage temperatureTst-20-70
    Lead Soldering TempTls--260
    Lead Soldering Timetsec--10
    Operating case temperatureTop20-30
    Relative HumidityRH%15-75
