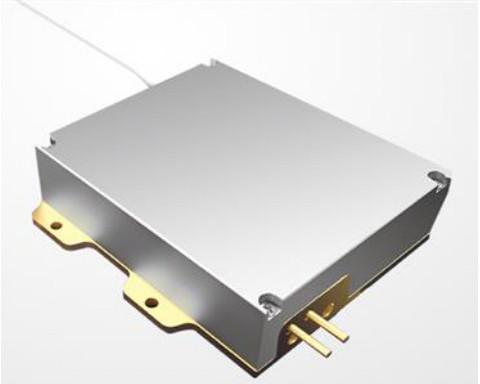

    Bwt 808 Nm 60 W Optically Pumped Semiconductor Laser

    Ask Lasest Price
    Brand Name : BWT
    Model Number : K808DN1RN-60.00W
    Certification : ISO9001
    Payment Terms : T/T
    Delivery Time : 4-8weeks
    Supply Ability : 100,000/year
    • Product Details
    • Company Profile

    Bwt 808 Nm 60 W Optically Pumped Semiconductor Laser

    Features:

    • 808nm wavelength
    • 60W output power
    • 106.5µm fiber core diameter
    • 0.22NA
    • 1040nm-1200nm feedback protection

    Applications:


    DPSS pumping

    Medical use

    Material processing

    Specifications(25℃)


    Symbol


    Unit


    K808DN1RN-60.00W
    MinimumTypicalMaximum
    Optical DataCW-Output PowerPoW60--
    Center Wavelengthλcnm808±3
    Spectral Width (FWHM)△λnm-6-
    Wavelength Shift with Temperature△λ/△Tnm/℃-0.3-
    Wavelength Shift with Current△λ/△Anm/A-0.6-
    Electrical DataElectrical-to-Optical EfficiencyPE%-42-
    Threshold currentlthA--5.5
    Operating currentlopA-0.85-
    Operating voltageVopV-28.429
    Slope EfficiencyηW/A-13-

    Fiber Data


    Core diameterDcoreμm-106.5-
    Cladding diameterDcladμm-125-
    Fiber Loose Tubing Diameter
    -

    mm

    0.9
    Numeric apertureNA--0.22-
    Fiber lengthLcm-2-
    Fiber Loose Tubing Diameter-mm0.9
    Minimum Bending Radius-mm50--
    Fiber termination-mm-
    SMA905
    -
    Feedback IsolationWavelength Rangeλnm1040-1200
    Isolation-dB-30-
    Thermistor
    -Rt
    (K Ω)/β(25)
    -
    10±3%/3477
    -
    OthersESD-V--500
    Storage temperature--20-70
    Lead Soldering TempTls--260
    Lead Soldering TimeTIssec--10
    Operating case temperatureTop15-35
    Relative Humidity-%15-75
