Brand Name : | BWT |
Model Number : | KE70HA5CAN-15.00W |
Certification : | ISO9001 |
Payment Terms : | T/T |
Delivery Time : | 4-8weeks |
Scientific Research 1470nm 15w Fiber Coupled Diode Laser
Features:
1470nm wavelength
15W output power
400µm fiber core diameter
0.22NA Optical fiber numerical aperture
Applications:
Cosmetology
Physiotherapy
Surgery
Dentistry
Specifications(25℃) | Symbol | Unit | KE70HA5CAN-15.00W | |||
Minimum | Typical | Maximum | ||||
Optical Data(1) | CW Output Power | Po | W | 30 | - | - |
Center Wavelength | lc | nm | 1470±20 | |||
Wavelength Shift with Temperature | △l/△T | nm/℃ | - | 0.3 | - | |
Electrical Data | Electrical-to-Optical Efficiency | PE | % | - | 16 | - |
Operating Current | Iop | A | - | - | 9 | |
Threshold Current | Ith | A | - | 0.3 | - | |
Operating Voltage | Vop | V | - | - | 25 | |
Slope Efficiency | η | W/A | - | 3.8 | - | |
Fiber Data | Core Diameter | Dcore | µm | - | 105 | - |
Numerical Aperture | NA | - | - | 0.22 | - | |
Fiber Connector | - | - | - | SMA905 | - | |
Thermistor | Rt | (KΩ)/(25℃) | 10±3% | |||
PD | PD | µA | 10 | - | 1000 | |
Others | ESD | Vesd | V | - | - | 500 |
Storage Temperature (2) | Tst | ℃ | -20 | 70 | ||
Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
Lead Soldering Time | t | sec | - | - | 10 | |
Operating Case Temperature (3) | Top | ℃ | 15 | - | 30 | |
Relative Humidity | RH | % | 15 | - | 75 | |
Aiming | Output Power | Pa | mW | 2 | - | - |
Wavelength | λa | nm | 635±10 | |||
Voltage | Va | V | - | 2.3 | 3 | |
Current | la | mA | 45 | 65 |
(1) Data measured under operation output at 15W@25
(2) A non-condensing environment is required for operation and storage.
(3) Operating temperature defined by the package case. Acceptable operating range is 15 ~30 ,but performance may vary.

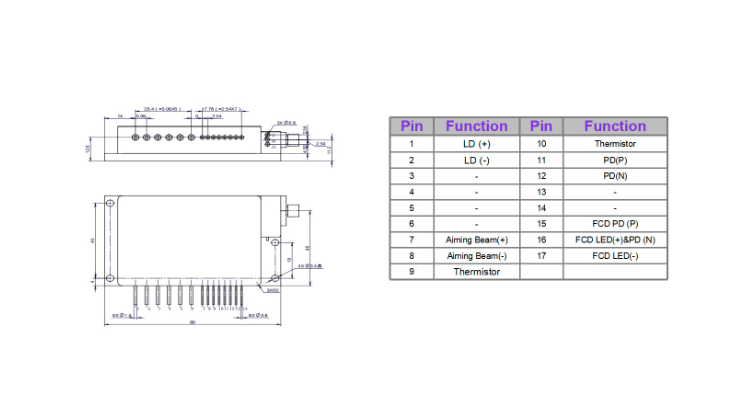

Instructions for use
- Avoid eye and skin exposure to direct radiation during operation.
- ESD precautions must be taken during storage, transportation and
operation.
- Short-circuit is required between pins during storage and
transportation.
- Please connect pins to wires by solder instead of using socket
when operation current is higher than 6A.
- Soldering point should be close to the middle of the pins.
- Soldering temperature should be lower than 260℃ and time shorter
than 10 second.
- Make sure the fiber output end is properly cleaned before
operation of laser. Follow safety protocols to avoid injury when
handling and cutting the fiber.
- Use constant current power supply to avoid surge current during
operation.
- Laser diode must be used according to the specifications.
- Laser diode must work with good cooling.
- Operation temperature ranges from 15℃ to 30℃ .
- Storage temperature ranges from -20℃ to +70℃.
![]() |
