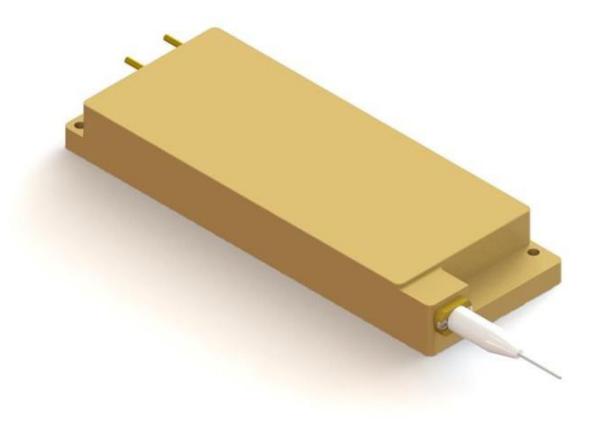

    976nm 250W High Power BWT Fiber Coupled Laser BWT

    Ask Lasest Price
    Brand Name : BWT
    Model Number : K976-A0-250.0W-13522-D
    Certification : ISO9001
    Payment Terms : T/T
    Delivery Time : 4-8weeks
    Supply Ability : 100,000/year
    • Product Details
    • Company Profile

    976nm 250W High Power BWT Fiber Coupled Laser BWT

    Features:

    • 976nm wavelength
    • 200W output power
    • 135µm fiber core diameter
    • 0.22N.A.
    • 1040nm-1200nm feedback protection

    Applications:

    • Fiber laser pumping

    Specifications(25℃)


    Symbol


    Unit


    K976-A0-250.0W-13522-D
    MinimumTypicalMaximum
    Optical DataCW-Output PowerPoW200--
    Center Wavelengthλcnm976±3nm
    Spectral Width (FWHM)△λnm6
    Wavelength Shift with Temperature△λ/△Tnm/℃-0.3-
    Wavelength Shift with Current△λ/△Anm/A-1-
    Electrical DataElectrical-to-Optical EfficiencyPE%-48-
    Threshold currentlthA-0.9-
    Operating currentlopA-1314
    Operating voltageVopV-31.535
    Slope EfficiencyηW/A-17.5-

    Fiber Data


    Core diameterDcoreμm-135-
    Cladding diameterDcladμm-155-
    Numeric apertureNANA-0.22-
    Fiber lengthLfm1.92-
    Fiber Loose Tubing Diameter-mm0.9
    Minimum Bending Radius-mm88--
    Fiber termination---FPT-
    Feedback IsolationBack reflection wavelengthλnm1020-1200
    Back reflection isolation-dB-30-
    OthersESDVesdV--500
    Storage temperatureTst-20-70
    Lead Soldering TempTls--260
    Lead Soldering Timetsec--10
    Operating case temperatureTop15-35
    Relative HumidityRH%15-75
