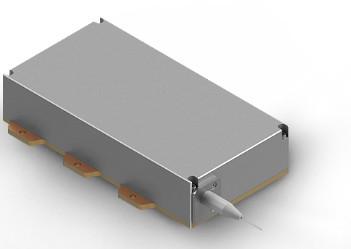

    793 Nm 180w Fiber Coupled Diode Laser Iso9001

    Ask Lasest Price
    Brand Name : BWT
    Model Number : K793DN2RN-180.00W
    Certification : ISO9001
    Payment Terms : T/T
    Supply Ability : 100,000/year
    • Product Details
    • Company Profile

    793 Nm 180w Fiber Coupled Diode Laser Iso9001

    793nm-140W


    Features:

    793nm wavelength

    180W output power

    200µm fiber core diameter

    0.22N.A.

    1900nm-2100nm feedback protection
    Applications:

    Fiber laser pump source

    Scientific Research

    Specifications(25℃)


    Symbol


    Unit


    K793DN2RN-180.00W
    MinimumTypicalMaximum
    Optical DataCW-Output PowerPoW180--
    Center Wavelengthλcnm793±3
    Spectral Width (FWHM)△λnm-45
    Wavelength Shift with Temperature△λ/△Tnm/℃-0.3-
    0.15/0.22NA-%9095-
    Electrical DataElectrical-to-Optical EfficiencyPE%38-
    Threshold currentlthA-1112.5
    Operating currentlopA-1.6-
    Operating voltageVopV-43.245
    Slope EfficiencyηW/A-19-

    Fiber Data


    Core diameterDcoreμm-200-
    Cladding diameterDcladμm-220-
    Numeric apertureNANA-0.22-
    Fiber lengthLfm-2.0-
    Fiber Loose Tubing Diameter-mm0.9mm
    Minimum Bending Radius-mm80--
    Fiber termination---None-
    Feedback IsolationBack reflection wavelengthλnm1900-2100
    Back reflection isolation-dB-30-
    OthersESDVesdV--500
    Storage temperatureTst-20-70
    Lead Soldering TempTls--260
    Lead Soldering Timetsec--10
    Operating case temperatureTop20-30
    Relative HumidityRH%15-75
