    0.22NA 940nm Wavelength 30w Fiber Coupled Diode Laser

    Ask Lasest Price
    Brand Name : BWT
    Model Number : K940FA3RN-30.00W
    Certification : ISO
    Payment Terms : T/T
    Supply Ability : 100,000/year
    Delivery Time : 4-8weeks
    • Product Details
    • Company Profile

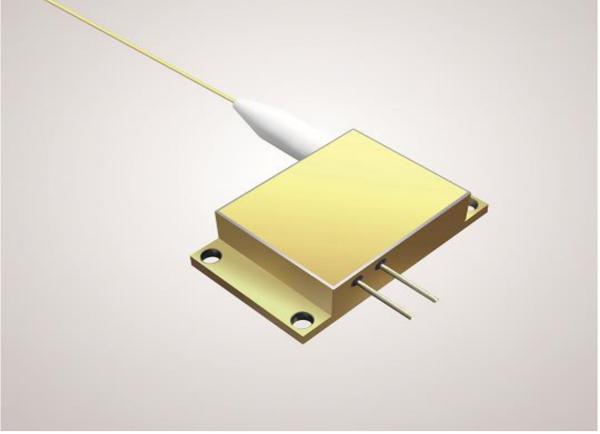

    0.22NA 940nm Wavelength 30w Fiber Coupled Diode Laser


    fiber coupled diode laser


    Features:
    • 940nm wavelength
    • 30W output power
    • 105µm fiber core diameter
    • 0.22NA
    • 1040nm~1200nm feedback protection
    Applications:
    • Laser pumping
    • Medical use
    • Material processing

    Specifications(25℃)SymbolUnitK808F02MN-15.00W
    MinimumTypicalMaximum

    Parameter


    CW-Output PowerPoW30--
    Center Wavelengthλcnm940±10
    Spectral width(FWHM)△​λnm6
    Wavelength Shift with Temperature△​λ/△Tnm/℃-0.3-
    Wavelength Shift with△​λ/△Anm/A-0.6-
    Electrical
    Data
    Electrical-to-Optical EfficiencyPE%-52-
    Threshold CurrentIthA-0.9-
    Operating CurrentIopA-1213
    Operating VoltageVopV-4.86
    Slope EfficiencyηW/A-2.7-
    Fiber DataCore diameterDcoreµm-105-
    Cladding DiameterDcladµm-125-
    Fiber Loose Tubing Diameter-mm0.9
    Numerical ApertureNA--0.22-
    Fiber lengthLfm-1-
    Minimum Bending Radius-mm50--
    Fiber Termination---None-
    Feedback
    Isolation
    Wavelength Range​λnm1040~1200
    Isolation-dB-30-
    OthersESDVesdV--500
    Storage TemperatureTst-20-70
    Lead Soldering TempreatureTls--260
    Lead Soldering Timetsec--10
    Operating case temperatureTop15-35
    Relative HumidityRH%15-75
