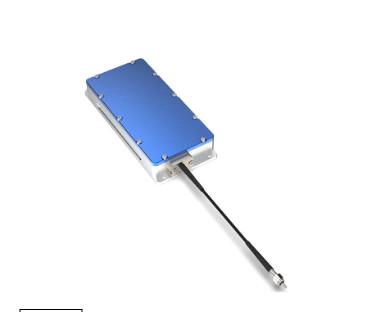

    50w Detachable 445nm Diode Laser For Laser Additive Reproduction

    Ask Lasest Price
    Brand Name : BWT
    Model Number : K445FMKFN-50.00WWN1N-20022R55ESM
    Certification : ISO
    Payment Terms : T/T
    Supply Ability : 100,000/year
    Delivery Time : 4-8weeks
    • Product Details
    • Company Profile

    50w Detachable 445nm Diode Laser For Laser Additive Reproduction


    445nm 30w Detachable High Power Diode Laser For Medical Use

    Features:
    • 445nm wavelength
    • 50W output power
    • 200µm fiber core diameter
    • 0.22NA
    Applications:

    Laser additive reproduction


    Specifications(25℃)SymbolUnitK445FMKFN-50.00WWN1N-20022R55ESM
    MinimumTypicalMaximum
    Optical Data
    (1)
    CW-Output PowerPomW50--
    Center Wavelengthλcnm445±10
    Spectral width(FWHM)△​λnm-5-
    Electrical
    Data
    Electrical-to-Optical EfficiencyPE%-25-
    Threshold CurrentIthA-0.3-
    Operating CurrentIopA-3.5-
    Operating VoltageVopV-60-
    Fiber DataCore diameterDcoreµm-200-
    Numerical ApertureNA--0.22-
    Fiber LengthLfm-1-
    Fiber Termination---SMA905-
    Minimum Bending Radius-mm60--
    OthersESDVesdV--500
    Storage TemperatureTst-20-70
    Lead Soldering TempreatureTls--260
    Lead Soldering Timetsec--10
    Operating case temperatureTop15-35
    Relative HumidityRH%15-75
