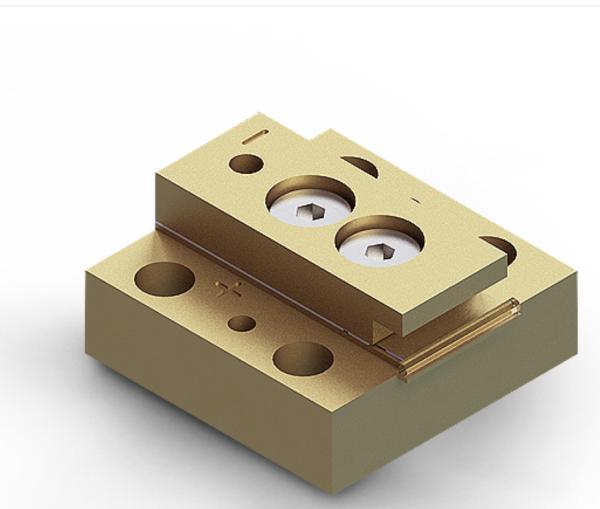

    Conduction Cooled Single 808nm Laser Diode Bar Product 80W

    Ask Lasest Price
    Brand Name : BWT
    Model Number : M10N-808.3-60C-1 , M10N-808.3-80C-1 , M10N-880.3- 60C-1 , M10N-980.3-80C-1
    Certification : ISO9001
    Payment Terms : T/T
    Supply Ability : 100,000/year
    Delivery Time : 4-8weeks
    • Product Details
    • Company Profile

    Conduction Cooled Single 808nm Laser Diode Bar Product 80W

    Conduction Cooled Single Bar Product

    Features:

    • Low Smile
    • Optional BTS
    • Conduction cooled

    Applications:

    • Scientific Research

    Specifications(25℃)


    Unit


    M10N-808.3-60C-1

    M10N-808.3-80C-1

    M10N-880.3-

    60C-1

    M10N-980.3-80C-1
    Optical DataOutput PowerW/bar60806080
    EmitterSizeμm150200150100
    FillFactor%30403020
    Center Wavelengthnm808±3808±3880±3980±3
    Spectral Width (FWHM)nm3444
    Fast axis divergence(95% power)dog-65-65-51-51
    Slow Axis Divergence with FAC (90% power)dog-9-9-9-9
    Polarization Mode-TETETETE
    Wavelength Temp.coeffcientnm/-0.28-0.28-0.28-0.28
    Electrical DataEOConversion Efficiency%≧50≧50≧50≧50
    Threshold currentA3019143
    Operating currentA65856585
    Operating voltageV≦2≦2≦2≦2
    Slope EfficiencyW/A≧1≧1≧1≧1
    Thermal DataOperating Temparatuare20-3020-3020-3020-30
    Storage Temperature-20-55-20-55-20-55-20-55
    Recommended Heatsink capacityW≧120≧160≧120≧160
    Part No.M10Y-808.3-60C-1M10Y-808.3-80C-1M10Y-880.3-60C-1M10Y-980.3-80C-1
    Fast axis divergence(95% power)<0.5<0.5<0.5<0.5
    All other specifications same as above
